YAMAHA MOTIF XS6-Clavier de scene

Description

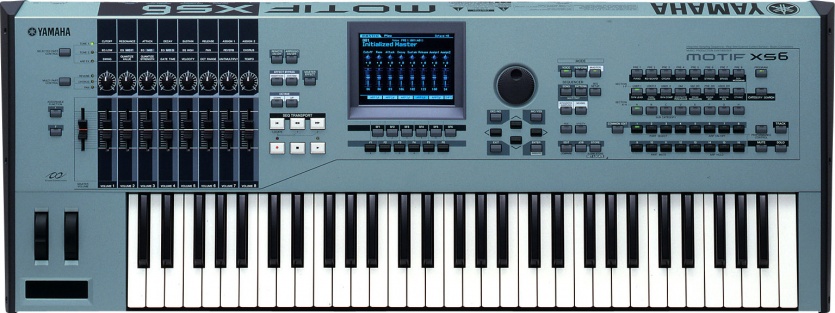

YAMAHA MOTIF XS6

Keyboard Number of Keys 61
Type FSX Keyboard
Initial Touch Yes
Aftertouch Yes
Other Controllers Pitch Bend Yes
Modulation Yes
Control Slider Assignable Control Sliders x 8
Control Knobs Assignable Knobs x 8
Others Ribbon Controller,Assignable Function buttons x 2, Data dial
Display Type 5.7 inch graphic color backlit LCD
Size 320 x 240 dot
Backlight Yes
Contrast Yes
Voices
Tone Generation Tone Generating Technology AWM2 with Expanded Articulation
Multi Timbral Capacity 16 Parts (internal), Audio Input Parts (A/D, IEEE1394*) *1 stereo Part
Ware ROM Capacity 355MB (when converted to 16-bit linear format), 2,670 waveforms
Polyphony Number of Polyphony (Max.) 128
Preset Number of Voices Preset: 1,024 Normal Voices + 64 Drum Kits, GM: 128 Normal Voices + 1 Drum Kit, User: 128 x 3 (selected and copied from Preset bank) Normal Voice + 32 Drum Kits
Effects
Types Reverb 9 types
Chorus 22 types
Insertion 53 types x 8 blocks
Master Effect 9 types
Master EQ 5 bands
Part EQ 3 bands, stereo
Songs
Recording Number of Songs 64 Songs Mixing Voices: 16 Voices per Song and up to 256 Voices for all Songs Mixing Templates: 32 for all Songs and Patterns
Number of Tracks Pattern: 16 Phrase tracks Pattern Chain: Pattern track, Tempo track, Scene Song: 16 sequence tracks (Loop on/off can be set for each track), Tempo track, Scene track
Number of Phrase User Phrases: 256 per Pattern
Number of Arpegio Preset: Approx. 6,000 types User: 256 types *MIDI Sync, MIDI transmit/receive channel, Velocity Limit, and Note Limit can be set.
Number of Pattern 64 Patterns (x 16 sections), Measures: 256 maximum Mixing Voices: 16 Voices per Pattern and up to 256 Voices for all Patterns Mixing Templates: 32 for all Songs and Patterns
Data Capacity Approx. 130,000 notes
Number of Polyphony (Max.) 124
Note Resolution 480 ppq (parts per quarter note)
Tempo 5 - 300
Recording Function Real time replace Real time overdub (with the exception of the Pattern Chain) Real time punch in/out (Song only)
Scene Memory 5 per Song
Sequence Format Original format, SMF format 0, 1 (Format 1 load only)
Sampling
Samples Up to 1,024 Waveforms (Multi Samples) Up to 128 Key Banks per Waveform Up to 4,096 Key Banks
Sampling Source Analog input L/R, Stereo output (Resampling), Digital output IEEE1394 (available on the MOTIF XS6 and 7 when the IEEE1394 optional board has been installed)
Sampling Time 44.1kHz: 6 min. 20 sec. 22.05kHz: 12 min. 40 sec. 11.025kHz: 25 min. 20 sec. 5.0125kHz: 55 min. 40 sec. *Mono/Stereo
Sampling Frequency Rate 44.1kHz, 22.05kHz, 11.025kHz, 5.5125kHz (Stereo/Mono) Sampling Frequency via IEEE1394 (when IEEE1394 optional board has been installed): 44.1kHz (fixed)
Digital Sampling Frequency 16bit
Sampling Format Original format, WAV, AIFF
Storage and Connectivity
Expandability mLAN Expansion Boards Yes

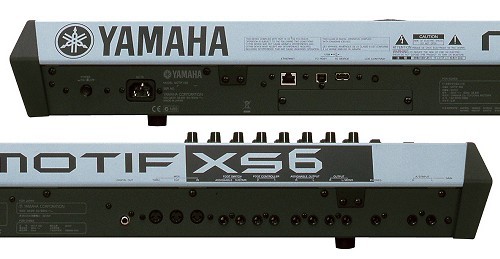

Connectivity Headphones PHONES (standard stereo phone jack)
Foot Control FOOT CONTROLLER1, 2
Foot Switch FOOT SWITCH 2(SUSTAIN, ASSIGNABLE)
MIDI MIDI IN/OUT/THRU
Assignable OUT ASSIGNABLE OUTPUT L, R (standard phone jack)
DIGITAL OUT DIGITALOUT
LINE OUT OUTPUT L/MONO, R (standard phone jack)
USB TO DEVICE USB (TO DEVICE)
USB TO HOST USB (TO HOST)
Others A/D INPUT L, R (standard phone jack),ETHERNET

Commentaire : Un des grands standards dans la catégorie .
