RANE 72 SEVENTY-TWO-Mixette

Description

RANE SEVENTY_TWO BATTLE MIXER

****

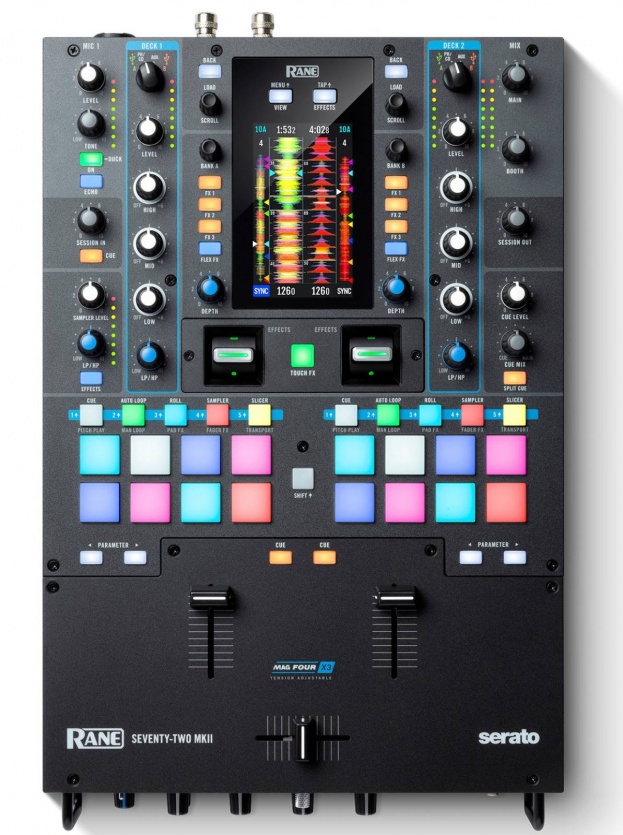

Display
Full-color display with capacitive multi-touch (2.1” x 3.7” / 54 x 95 mm (wxd)) (4.3” / 109 mm (diagonal))

Pads
16x velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)

Faders
3x MAG THREE tension-adjustable faders (2 channel/line faders, 1 crossfader)

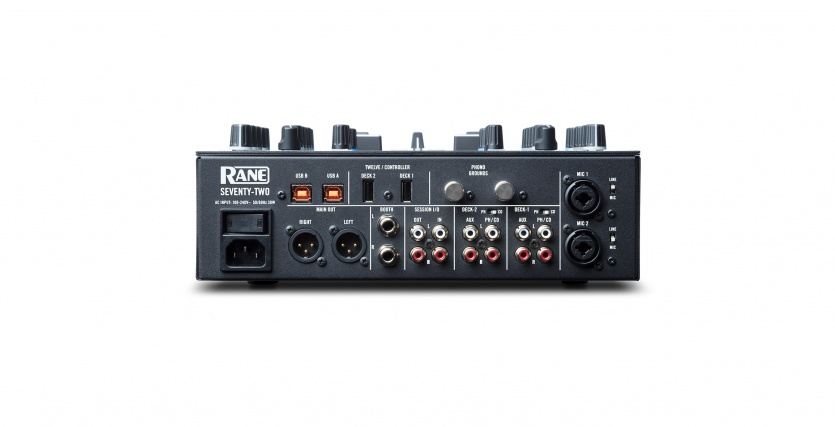

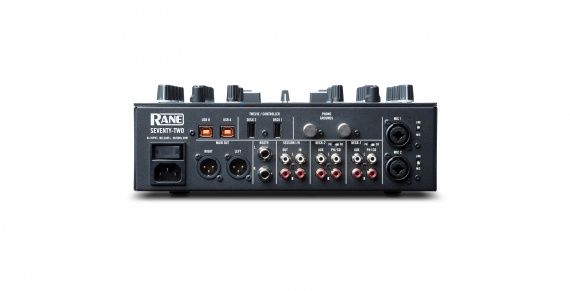

Outputs
2x XLR (Main)
2x 1/4” (6.35 mm) TRS (Booth)
1x RCA stereo pair (Session)
1x 1/4” (6.35 mm) TRS (Headphones)
1x 1/8” (3.5 mm) TRS (Headphones)
Inputs
4x RCA stereo pairs (Deck 1–2)
2x XLR / 1/4” (6.35 mm) TRS (Mic 1–2)
1x RCA stereo pair (Session)
1x 1/4” (6.35 mm) TRS (Footswitch)
Connections
2x USB Type-A ports (Deck 1–2 USB Controllers)
2x USB Type-B ports
1x IEC power cable input
Digital Audio
Converters: AKM High Definition Audio; 24-bit PCM, 48 kHz
Digital Signal Processing: 32-bit, floating point, double precision
Dynamic Range (A-weighted, unity gain):
ADC: 114 dB
DAC: 114 dB
CD Input to Analog Output: 114 dB
CD Input to USB Output: 114 dB
USB Input to Analog Output: 114 dB
Power
Voltage: 100–240V, 50/60 Hz
Consumption: 30 W
Dimensions
Dimensions (wxdxh): 11.2” x 17.5” x 4.25” (28.4 x 44.5 x 10.8 cm)

Weight
12.0 lbs. (5.46 kg)

Two Deck Inputs
Left Deck and Right Deck
Source selects
USB-A
PH-CD
AUX
USB-B
PH-CD RCA Inputs
Select Phono (RIAA) or CD (line-level)
CD setting
4 Vrms maximum input
A-weighted DR 114 dB
Phono Setting
RIAA Curve, +0.1/-0.2dB
Gain @ 1kHz = 30 dB
Maximum input at 1 kHz = 126mV
AUX RCA Input
4 Vrms maximum input
A-weighted DR 114 dB
Gain Trim
Off at minumum
0dB @ center position
+15
Tone Controls
Full-cut 2nd order filters
Off @ minumum, flat at center, +6 dB maximum
Crossover frequencies 300 Hz and kHz
Manual swept filter
Flat at center, CCW = High-cut, CW = Low-cut
4th order, adjustable Q
Session Inputs
RCA Inputs
Max Input 4 Vrms
A-weighted DR 114 dB
Analog to Digital Converters
AKM High Definition Audio
24-bit PCM, 48 kHz
Digital to Analog Converters
AKM High Definition Audio
24-bit PCM, 48 kHz
Digital Signal Processing
32-bit, floating point, double precision
A-weighted Dynamic Range (unity gain)
ADC, 114 dB
DAC, 114 dB
Single CD Input to any Analog Output, 111 dB
Single CD Input to USB Output, 114 dB
Single USB Input to any Analog output, 114 dB
USB Ports
Two Device Ports
Two powered Hub Ports
+5V @500mA
Connect RT01 Controller
Auto-switch HUB ports between USB-A and USB-B
Determined by Input Selection
USB 2.0 Class-compliant Audio and MIDI
No driver needed for MAC
Universal ASIO driver for windows
24-bit PCM, 48 kHz SR
USB Port Audio for USB-A and USB-B
Record
Deck-1 Pre L/R
Deck-2 Pre L/R
Deck-1 Post L/R
Deck-2 Post L/R
Mix L/R
Mics L/R
Session L/R
Playback
Deck-1 L/R
Deck-2 L/R
Sampler L/R
Two Mic Inputs
Mic-1 Features
XLR/TRS Combo Jack
Mic/Line Select on Rear Panel
Dynamic Mic, Analog Gain 30dB, Max Input 0.126 Vrms
Line, Analog Gain 4.75 dB, Max Input 2.3 Vrms
ON/OFF switch
Press to toggle on/off
Press and hold to enable auto talk-over
Duck level = 10 dB
Gain Trim: Off to +20dB (unity at center)
Tone Control
One knob tilt tone control
Max boost/cut = 10 dB
Echo Effect (Mic-1 Only)

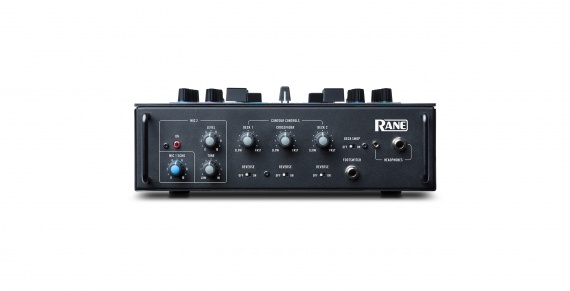

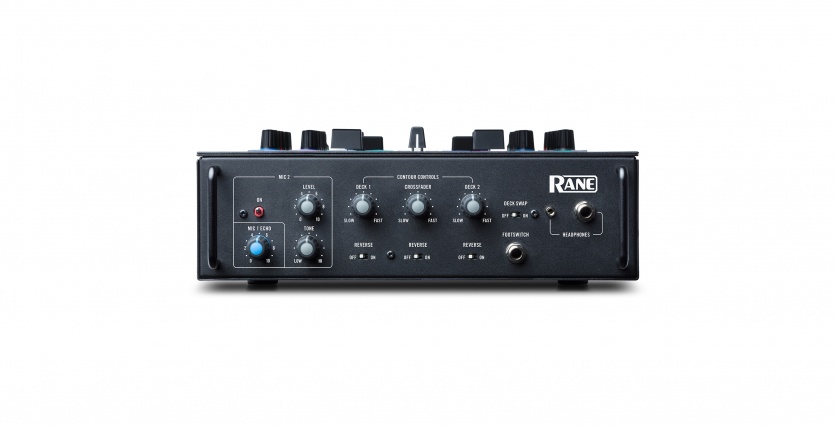

Echo enable button on top plate
Echo Depth Control on Front Panel
Mic-2 Features
XLR/TRS Combo Jack
Mic/Line Select on Rear Panel
Dynamic Mic, Analog Gain 30dB, Max Input 0.126 Vrms
Line, Analog Gain 4.75 dB, Max Input 2.3 Vrms
ON/OFF switch (front panel)
Toggle on/off
Gain Trim (front panel)
Off to +20dB (unity at center)
On front Panel
Tone Control (front panel)
One knob tilto tone control
Max boost/cut = 10 dB
Line Outputs
Balanced XLR Main Output
Frequency Response Flat 20 to 20 kHz (+/- 0.2 dB)
Maximum Output, 8 Vrms
THD+N, 0.002%, 1 kHz, 4 Vrms
Balanched TRS Booth Output
Frequency Response Flat 20 to 20 kHz (+/- 0.2 dB)
Maximum Output, 8 Vrms
THD+N, 0.002%, 1 kHz, 4 Vrms
Unablanced Session Output
Frequency Response Flat 20 to 20 kHz (+/- 0.2 dB)
Maximum Output, 4 Vrms
THD+N, 0.02%, 1 kHz, 2 Vrms
Headphones
1/4" TRS and mini 3.5mm TRS Jacks
Max ouput voltage, 4V, (no load)
THD+N @ 2Vrms = 0.003%
Power Into 50 ohms, 96mW
Turn on/off muting
Universal AC Mains Power Supply
AC Input: 100 to 240 AC, 50/60 Hz, 30 watts
Minimum System Requirements
Operating System
macOS High Sierra 10.13
macOS Sierra 10.12
Mac OS X 10.11
Windows 10
Windows 8.1
Windows 7
Processor
i3: 1.07GHz
i5: 1.07GHz
i7: 1.07GHz
Screen Resolution
1280x720
Memory
4 GB
USB
Available USB 2.0 port
Free HDD Space
5 GB
