MARKBASS SA450-Tête

Description

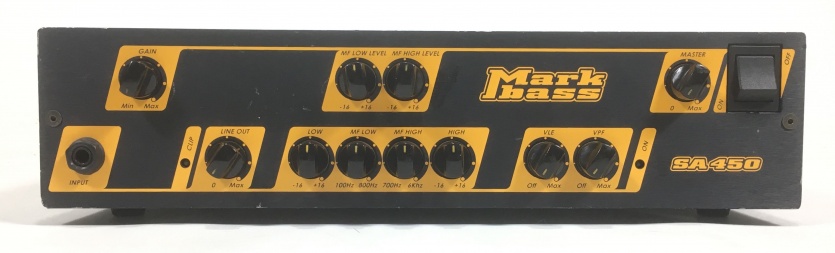

MARKBASS SA450

INPUTS
INPUT
impedance: 500 Kohm, max. voltage: 9 Vpp
EFFECT RETURN
impedance: 33 Kohm, max. voltage: 12 Vpp

CONTROLS

GAIN
-80 dB to +25 dB range
LINE OUT
level control on front panel
PRE/POST EQ (for line out)
switch on rear panel
GROUND LIFT
switch on rear panel
MASTER VOLUME

EQUALIZATION

LOW
center frequency: 40 Hz; level ±16 dB
LOW-MID
semi-parametric: frequency 100-800 Hz, level ±16 dB
HIGH-MID
semi-parametric: frequency 700 Hz-6 kHz, level ±16 dB
HIGH
10 kHz shelf; level ±16 dB
VPF (Variable Pre-shape Filter)
center frequency 380 Hz (cut)
VLE (Vintage Loudspeaker Emulator)
250 Hz-20 kHz cut
OUTPUTS

EFFECT SEND
unbalanced, max. voltage 12 Vpp (pre-EQ)
TUNER OUT
unbalanced, max. voltage 2 Vpp
LINE OUT
balanced XLR, max. voltage 25 Vpp
SPEAKER OUT
speakon, 1/4"

OTHER

HEIGHT
3.39 in. / 8.6 cm (2U)
WIDTH
14.5" / 36.8 cm (with rack ears: 19" / 48.3 cm)
DEPTH
11.9 in. / 30.2 cm
WEIGHT
7.5 lbs / 3.4 kg
OUTPUT POWER
300W RMS @ 8 ohm, 500W RMS @ 4 ohm
POWER REQUIREMENT
100/120V; 230V; 240V
50/60Hz
(Voltage is factory preset according to region of sale)
